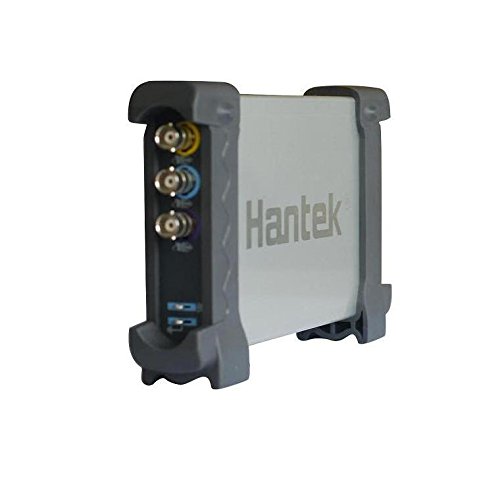

Hantek 6022BL_N PC Digital Portable Oscilloscope Based USB + Logic Analyzer 16 CHs
Description
🔧 Elevate Your Engineering Game with Hantek!
- COMPACT PORTABLE - Lightweight design (300g) makes it easy to carry your lab wherever you go.
- PROFESSIONAL QUALITY - Designed by Hantek, a trusted name in digital oscilloscopes.
- VERSATILE CONNECTIVITY - Connect multiple DSOs to a single computer for expanded functionality.
- USER FRIENDLY INTERFACE - Compatible with LabVIEW and VBVC for seamless integration into your projects.
- UNLEASH YOUR INNER ENGINEER - Experience precision with a 48 MS/s sampling rate for accurate signal analysis.
The Hantek 6022BL_N is a portable digital oscilloscope that combines a 48 Mega Samples per Second sampling rate with a compact design, making it ideal for professionals on the go. With 2 channels and compatibility with popular software like LabVIEW, this oscilloscope is perfect for both fieldwork and lab settings.
Specifications
| Brand | Hantek |
| Manufacturer | Hantek |
| Number of Memory Sticks | 1 |
| Item Weight | 300 g |
| Product Dimensions | 21 x 12.5 x 4 cm; 300 g |
| Item part number | 6022BL_N |
| Item Height | 40 Millimeters |
| Item Width | 12.5 Centimeters |
| Sampling rate | 48 Mega Samples per Second |
| Number of Channels | 2 |
| Are batteries included? | No |
Reviews
M**E
Very good product at a reasonable price.
Initially I had a bit of trouble installing the drivers but it happened on the second try. The scope is very useful for beginner work and I am a beginner, so it is perfect for me.
S**I
Okay for the price
Works okay for the price compatible with Windows with official software. Works like charm in linux with openhantek6022 open source software. Only drawback is you can only use upto 50v dc max....you need 100x or 1000x probe to make it perform sensibly
A**R
Doesn't work
Ideally the oscilloscope produce waveform on screen if probe is connected to source. With this scope evenif it is not connected to any source it is generating 10v 1khz signal. I have prettu good experience in handling MSO for protocol tracing but for this I spent 5 hours just understanding the issue but couldn't figure out the problem.
I**H
Read technical details before purchasing
There are some issues with the Windows 10 driver and the LA GUI interface. buggy software. Overall built quality is very good but disappointed from the software side.
K**I
Handy Tool
Very helpful tool for my hobby embedded development work.I am using both Analog scope capture and Logic analyzer, great that this product supports both.Back panel where probes are connected should have been hardened further with additional screws.
A**A
Best PC DSO for embedded debugging
Best PC DSO for embedded debugging.It contains no issue like mentioned on another site, which says it has runaway problem, high noise e.t.c.It is perfect for personal or professional use.Also this PC DSO is also used in the industry.It has single test point for internal testing and calibration.
J**A
Great Value and Functional Item
Well if you need for educational projects and prototypes donor have access to expensive DSO's then this is best for you. It is great . Functional value for money item go for it without hesitation.
J**O
Defective installation CD supplied.
Defective installation CD supplied. product was returned, and refund initiated.
