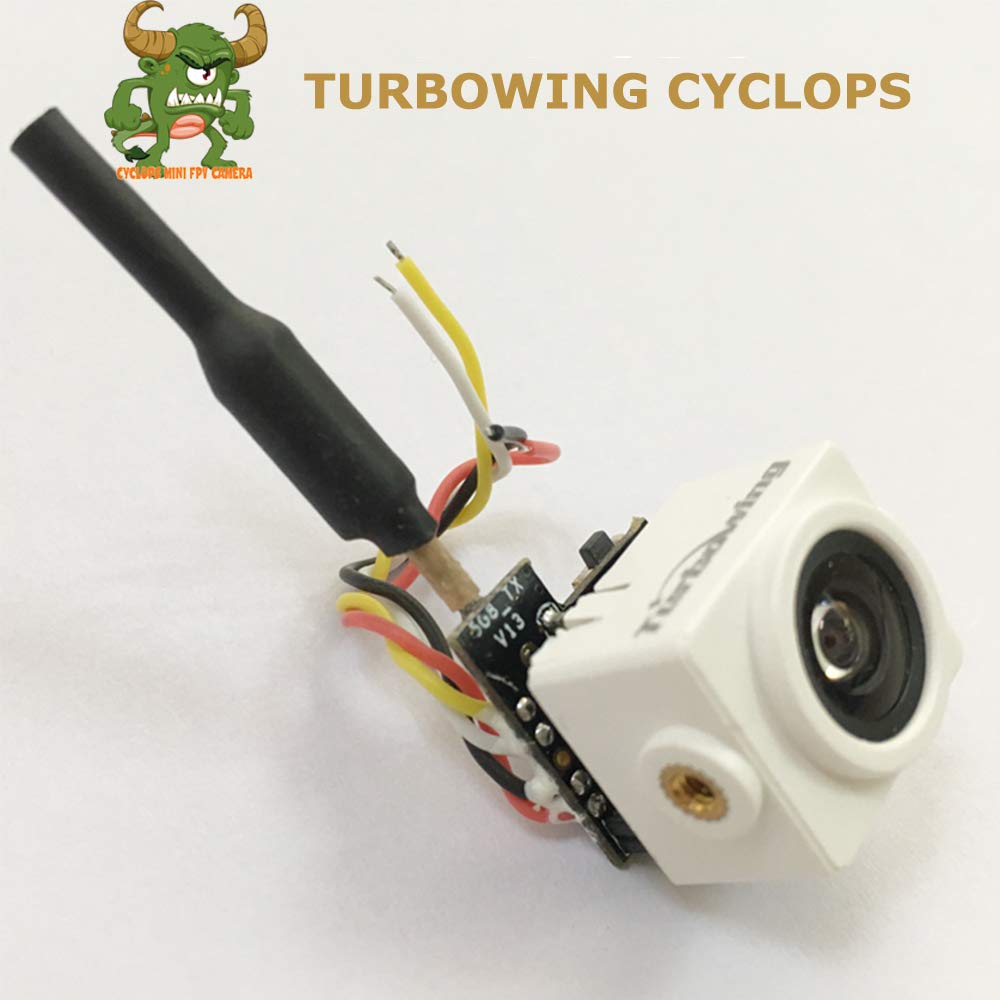

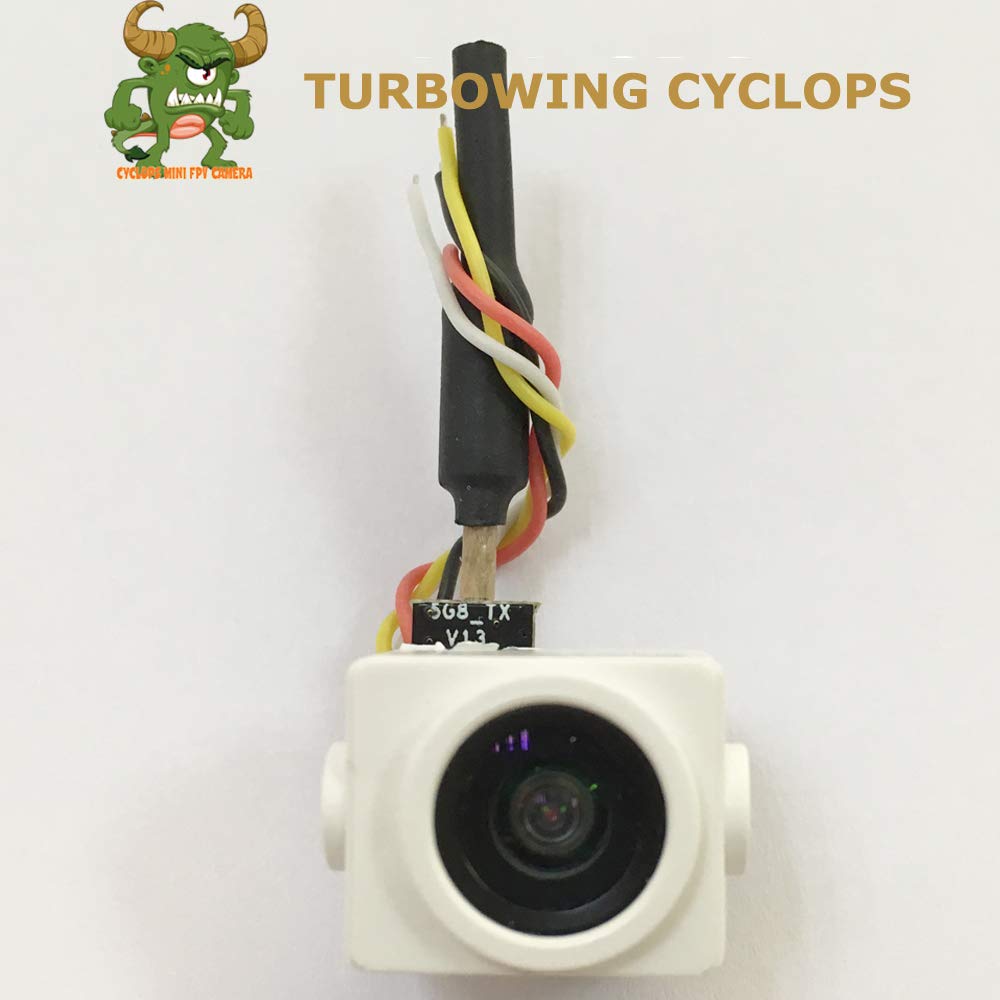

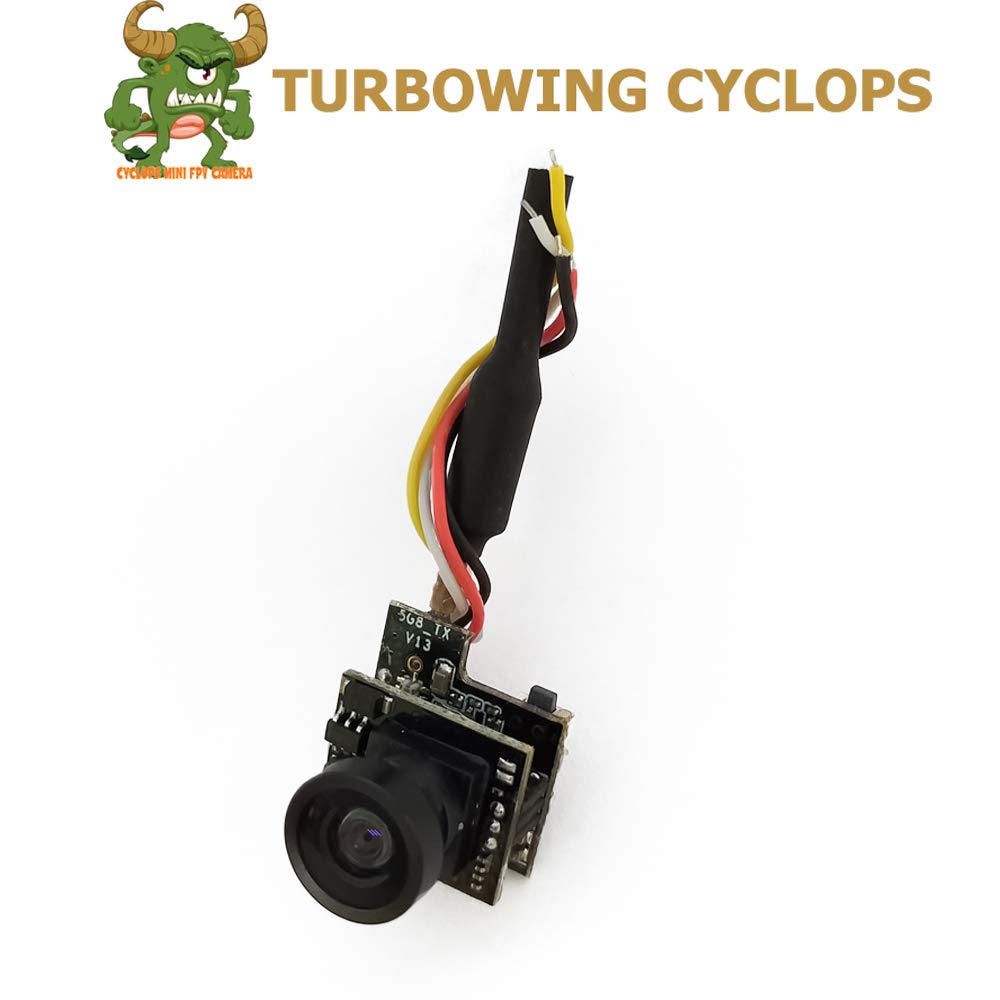

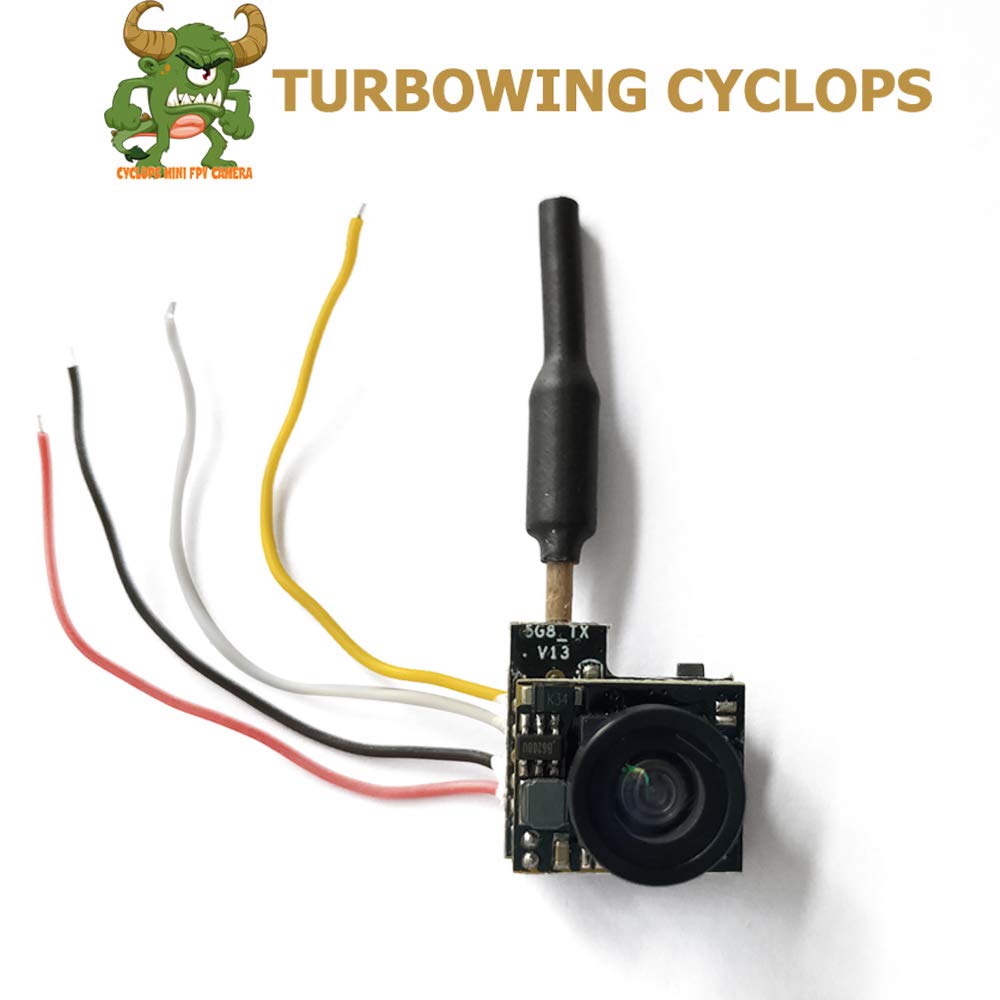

Turbowing V13 Micro Aio 700tvl Camera Only 3.2g 5.8ghz 25mw Fpv Transmitter With Dipole Brass Antenna Combo For Fpv Quadcopter Drone
Description

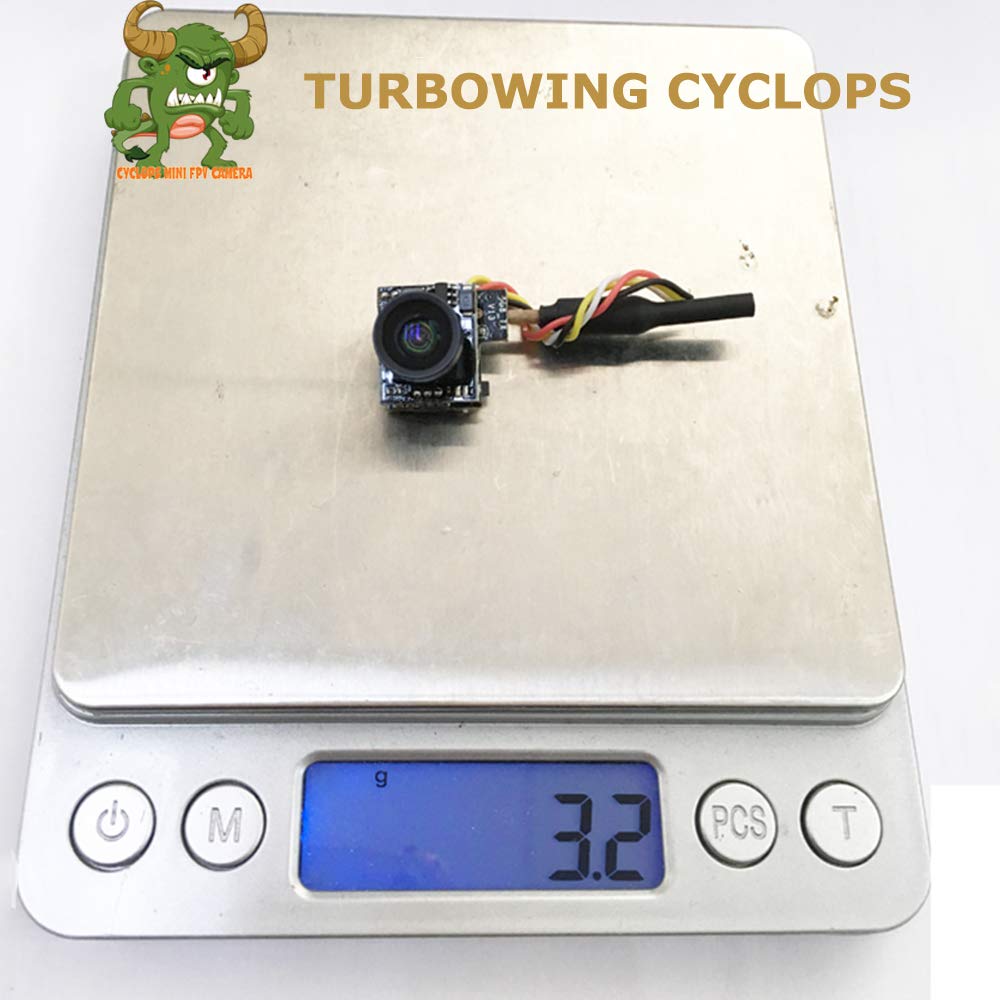

- 【25mw Aio Fpv Camera】All In One Vtx + Camera + Antenna, Only 3.2g .
- 【Small Fpv Camera】Power By 1s Lipo Battery, Pcb Size 14.5mm*12mm*5mm, The Aio Camera Combo Is Perfect For Ultra Micro Drone.
- 【Aio Fpv Camera Osd】It Support Connect With Osd, Allows You To Check Voltage At Any Time.
- 【Aio Camera Mount】If You Need To Aio Camera Install On Brushless Drone, Violent Fly. The Camera Is Equipped With a Housing Bracket With a Width Of 19mm And a m2 Screw Hole. Put On The Shell, If The Plane Hits, The Protect Shell Greatly Reduces The Rate Of Lens Damage. It Greatly Reduces User Loss.
- If You Do Not Need Protect Shell, You Can Remove It By Yourself.

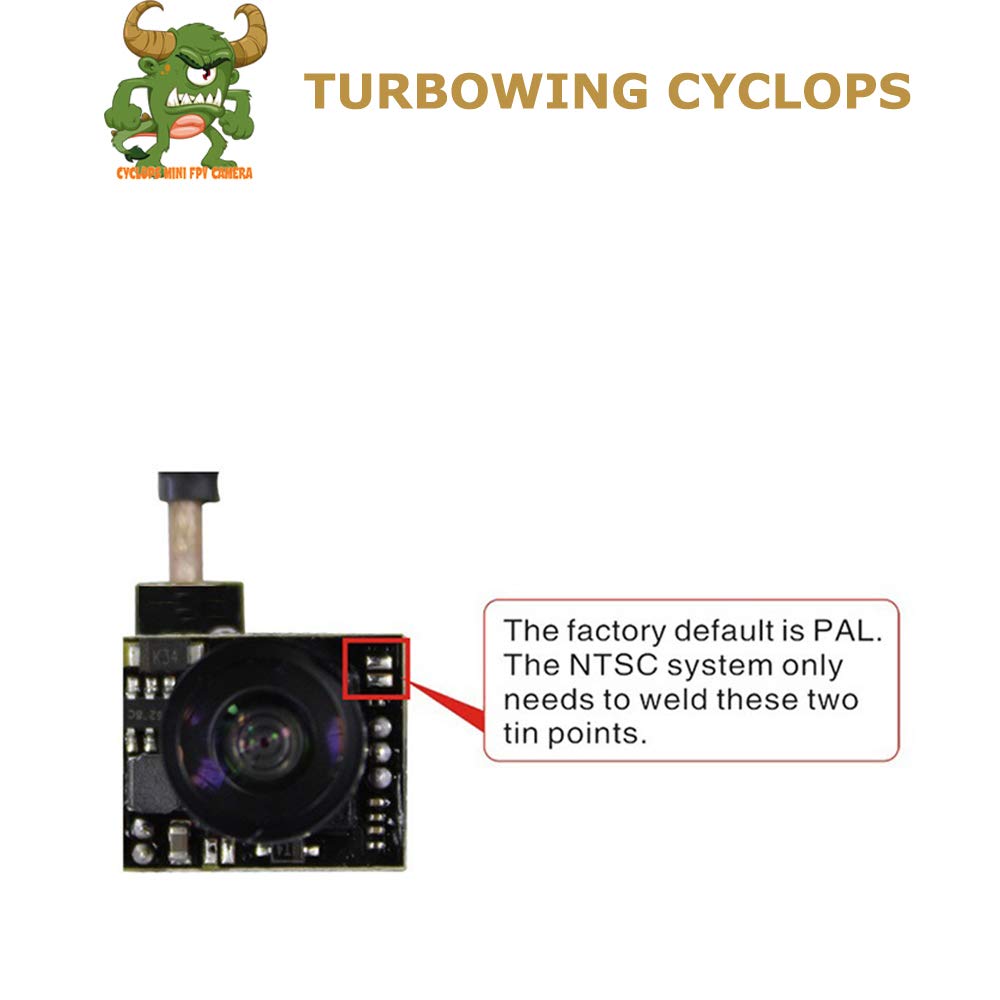

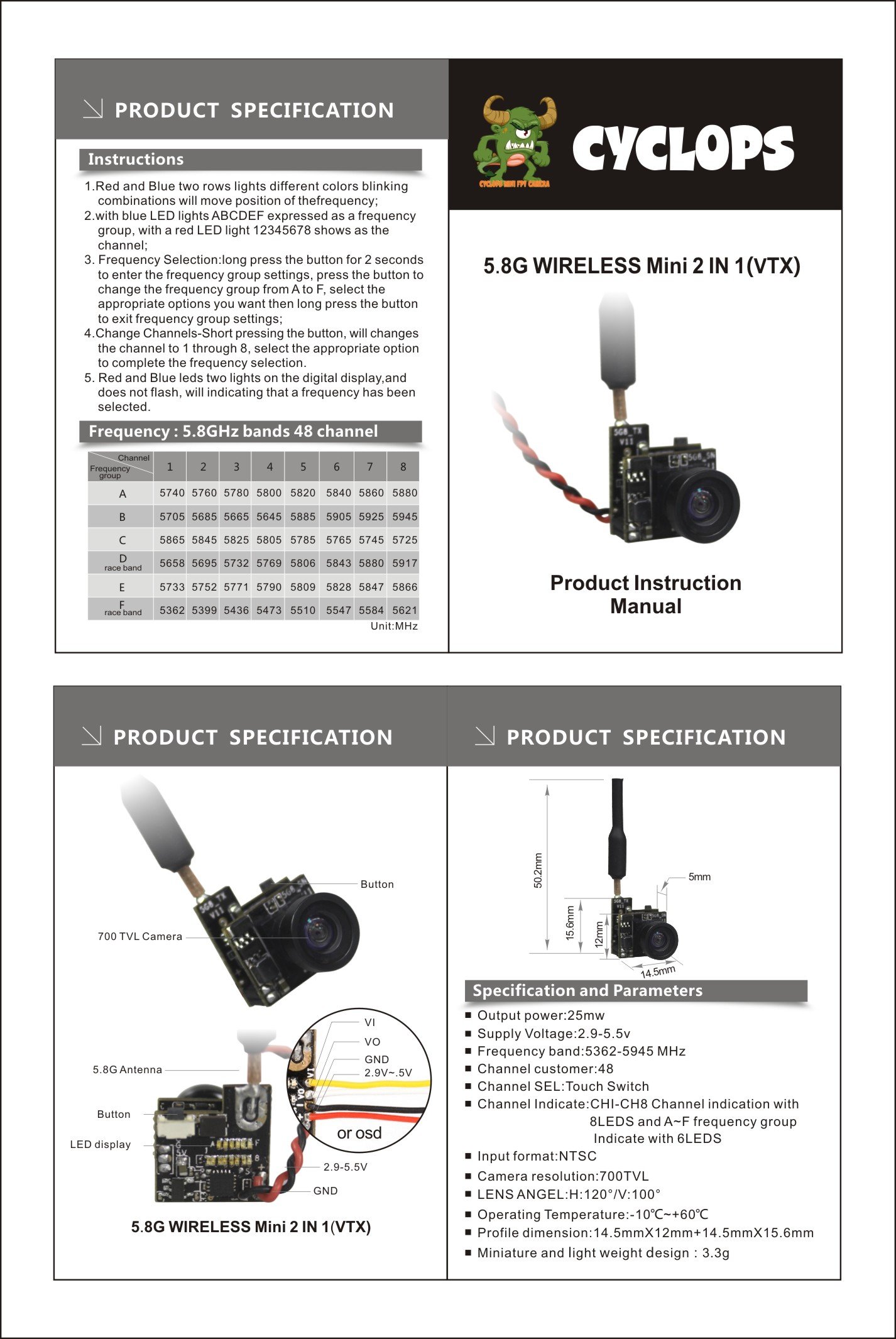

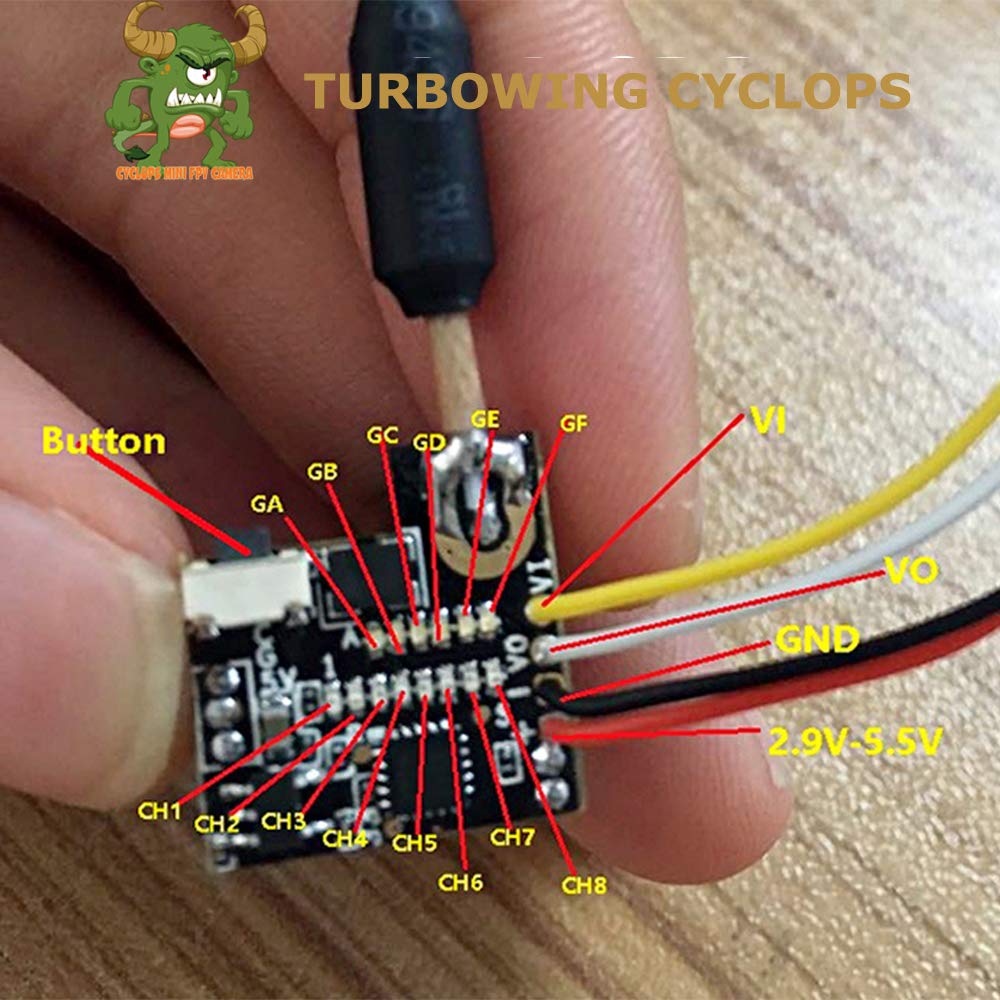

Features: This transmitter camera is compatible with osd. 700tvl high picture quality. Support touch switch select channel frequency group;8led display channel and 6leds display frequency group information; Can connect with osd Specification and parameters: Output power:25mw Supply voltage:2.9-5.5v Frequency band:5362-5945 mhz Channel customer:48 Channel indicate:Ch1-ch8 channel indication with 8leds and a~f frequency group indicate with 6leds Camera resolution:700tvl ，1/4”Coms Input format: PAL/NTSC (Factory default is NTSC) Lens angel:H:120°/v:100° Operating temperature:-10℃~+60℃ Interface：Vi, vo, gnd,vcc Power consumption:200~215ma@5v dcin Profile dimension:14.5mmx12mm+14.5mmx12mm Weight :3.3g Package included: 1 x 5.8g 48ch fpv camera & transmitter 2. English manual
