Intrustar ISDS220B Virtual PC USB oscilloscope two channels 60M bandwidth 200M sample rate with DDS signal source

Description

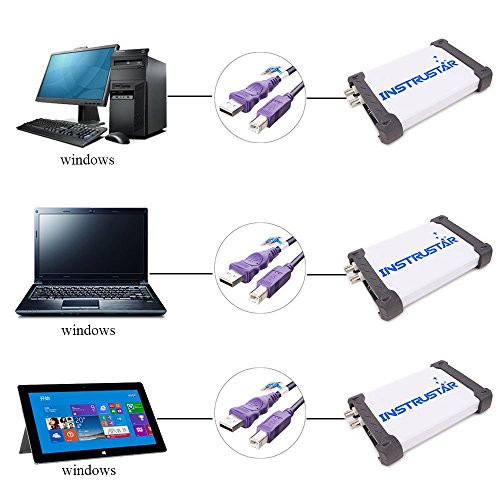

Intrustar ISDS220B dual-channel digital oscilloscope is a low-cost and high-performance product,it is portable and handhelded. it is the best tool for everybody in Electronic field.Two channels, 60M bandwidth 200M sampling rate can meet your test requirement. alternating support X-T and XY alternating pattern. Oscilloscope,DDS signal source, spectrum analyzer are in the oscilloscope. Feature Description Channels :2 Signal source:Sine, Square(Duty circle variable),Triangle,Up Sawtooth,Down Sawtooth,1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others) Spectrum Analyzers:Channels 2,Bandwidth 20M,FFT measure:Harmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR Impedance: 1MΩ 25pF Coupling: AC/DC Vertical resolution: 8Bit Gain range: -16V ~ 16V（probe X1） -160V ~ 160V（probe X10） Vertical accuracy: ±3% Timebase range:1ns-20s Autoset Yes(10Hz to 60MHz) Trigger Mode: Auto、Normal and Signal Trigger Type No、Rising edge、Falling edge、 Rising edge or Falling edge Trigger Source: CH1, CH2 Buffer Size :1MB/CH Bandwidth: 60MHz Sample rate:Maxmium 200MS/s Vertical mode CH1, CH2, ADD, SUB, MUL PC SYSTEM REQUIREMENTS Windows XP，Win7，Win8，Win10 Pentium or higer processor USB2.0 High speed port 512MB RAM 1GB hard disk space Shippinglist (1)Oscilloscope 1 pcs (2)Probes(X1/X10) 1 set (3)USB cable 1 PCS (4)Signal line (5)CD(user manual and software) 1 disk
