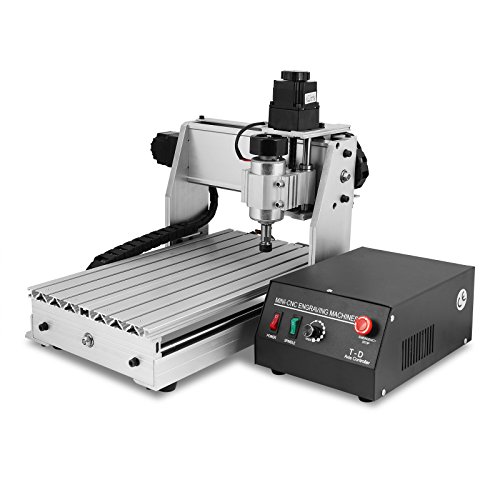

PowerHalo CNC Router Machine Engraver Machine Wood Engraving Machine 3020T 4 Axis Arts Crafts Cutting Tools (30x20cm 3020T 4 Axis)
Description
- Effective working travel : 200(X)*300(Y)*50(Z) mm.
- Work table dimension:200 X 300 X 15 mm; Shape dimension:550 X 400 X 350 mm.
- This engraving machine is equipped with aluminum alloy frame materials can make more steady and strong.
- This engraving machine can engrave much more materials by spiral flute bits, such as metal, steel, MDF board, solid wood, composite board plywood, stone.
- This engraving machine is designed for processing Industrial or hobby prototype building, building model making, PCB, advertising signs, artwork, crafts, aircraft models, RC model parts, etc.
3020T CNC Router CNC Engraving Machine Carving Tools More Precision Introductions: The CNC3020 engraving machine is quintessential for hobbyists, teaching, art, research and industrial purposes. Because of its compact design, the CNC3020 allows you to engrave from the office or in the comfort of your own home. A miniature version of a carving machine, it connects to your computer enabling you to create and design with ease . Technical Parameters Max.workpiece dimension:200mm*300mm Work table dimension:200mm*300mm*15mm Work table dimension:320mm*530mm Frame materials:aluminum alloy 6063 and 6061 Stepping motor type:57 two-phase 1.45A-2A Principal axis collet:ER11/3.175 mm Repeat accuracy:0.05mm Empty line speed:0-2500mm/min Spindle precision:radial beat acuities 0.03 mm Control unit:triaxial one-piece drive + ring variable power + PWM speed Carving Instructions:G code/TAB files/nc file/NCC files Communication interface:through parallel connection with computer Software environment:Windows 2000 / xp Carving speed:0-2000mm/min Package List 1× Engraving machine; 1× Control box; 1× Parallel cable; 1× Power cable ; 1× Tool box and tools ; 3× Axis motors ; 1pcs rotary axis and tailstock
